You can retrofit a new bathroom shower screen into an existing space by matching the adjustment range of the frame to the out of plumb variance of your walls. Successful retrofitting requires identifying wall runout using a 3-point check and ensuring the glass meets the AS1288 Australian safety standard. This process allows for a modern aesthetic upgrade without the need for a full bathroom renovation or custom-cut glass.
Can you retrofit a new shower screen into an existing bathroom?
Yes, retrofitting a new bathroom shower screen into an existing bathroom is possible and typically takes one day to complete. The key to a successful retrofit is selecting a semi-frameless or frameless design that offers built-in adjustment channels to compensate for existing wall and floor inconsistencies. This method avoids the high costs and long lead times associated with custom glass while significantly improving the room's visual appeal and waterproofing.
How do you measure for out of plumb walls for a shower screen?
To measure for out of plumb walls, you must perform a 3-point check by taking horizontal width measurements at the top, middle, and bottom of the shower opening. The difference between these three numbers represents the wall runout or variance. If the variance is greater than 5mm, you must choose an adjustable bathroom shower screen rather than a fixed-width panel to ensure a watertight and safe installation.
Identifying wall runout with the 3-point check
- Top measurement: Identify the width at the maximum height of the glass.
- Middle measurement: Identify the width at the 1000mm halfway mark.
- Bottom measurement: Identify the width at the threshold or floor level.
- Use the smallest measurement: Always purchase your screen based on the smallest width to ensure it fits between the wall channels.
How does the Optima range solve wonky wall issues?
The Optima adjustable range solves wonky wall issues by utilising a telescoping frame system that can expand or contract to meet the specific dimensions of your bathroom. These units provide up to 60mm of adjustment on the door fronts and 20mm on the return panels. This high level of tolerance makes it the primary choice for retrofitting into older Australian homes where walls are rarely perfectly square.
What are the AS1288 safety standards for shower glass in 2026?
Under the AS1288 Australian standard, all bathroom shower screen glass must be Grade A toughened safety glass. The regulation requires a minimum thickness of 6mm for framed and semi-frameless units, while a frameless shower screen typically requires 10mm glass to maintain structural integrity. Using certified glass ensures that if an impact occurs, the panel shatters into small granules rather than sharp shards.
Glass thickness and safety comparison
- 6mm glass: The standard for adjustable semi-frameless units; provides a balance of safety and weight.
- 10mm glass: The standard for a premium frameless shower screen; provides a heavy, high-end feel and superior strength.
- Grade A certification: All Builders Discount Warehouse glass is vetted for 2026 compliance and impact resistance.

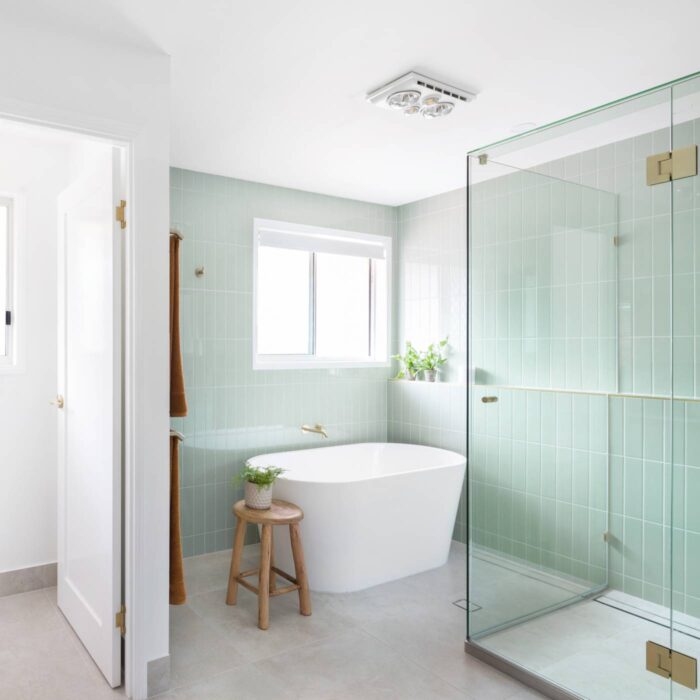

How do you prevent a frameless shower screen from leaking?
To prevent a frameless shower screen from leaking, you must install an aluminium water bar and high-quality h-seals. Because frameless designs lack a full perimeter frame, water can easily escape through the gap between the door and the floor. A water bar acts as a physical dam that reflects water back toward the drain, while h-seals provide a compression barrier between the glass panels.
Essential components for a watertight retrofit
- Aluminium water bar: A discreet metal trim installed at the base of the door.
- Clear h-seals: Applied to the edge of the glass to prevent spray from escaping through hinges.
- High-grade wet area silicone: Used to seal the fixed panels to the wall and floor surfaces.
Frequently Asked Questions About Shower Screen
A standard fixed panel has zero tolerance, but an adjustable semi-frameless bathroom shower screen can accommodate up to 20mm of wall runout per side using a telescoping wall channel.
A frameless shower screen has a higher risk of minor leaks if installed without a water bar or anti-leak sill. However, proper installation of seals and threshold trims makes them highly effective for daily use.
According to AS1288, the minimum thickness is 6mm for semi-frameless screens and 10mm for a fully frameless shower screen to ensure compliance with 2026 safety regulations.
Yes, as long as the hob is level and structural. You must ensure the mounting brackets are anchored into the wall studs to support the increased weight of 10mm toughened glass.
Take three width measurements at different heights and use the smallest one. This ensures the unit will fit the narrowest part of the opening while the adjustable frame fills the larger gaps.
Find adjustable and frameless shower screens at Builders Discount Warehouse
Future-proofing your bathroom starts with choosing products that meet the highest standards of safety and functionality. Builders Discount Warehouse offers a comprehensive range of bathroom shower screen solutions, from our highly adjustable Optima range to luxury 10mm frameless panels. Our direct-import model ensures that you receive trade-quality glass and hardware at a significant discount.
If you are dealing with wonky walls or an outdated shower setup, visit our showrooms in Brendale, Slacks Creek, or Nerang. Our team can help you select the correct adjustment range for your 3-point measurements, ensuring your retrofit is successful on the first attempt. Explore our full range of bathroom shower screen options online or in-store today.
